Main Specification
|

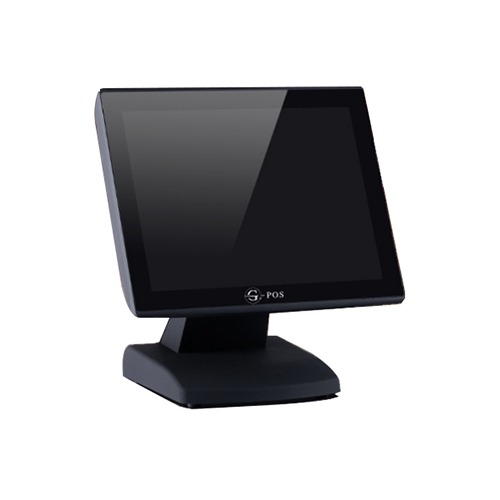

GP15-4125
|
GP15-i3 / GP16-i3
|
Processor
|
Intel Celeron Processor J4125 (4M Cache, up to 2.70 GHz)
|
Intel Core i3 5th Generation / 11th Generation
|
Memory
|
DDR4 4G 2666MHz (Max. 8GB)
|
4GB DDR3L SO-DIMM 1333/1600MHz (Max. 16GB)
|
Storage
|
M-SSD120GB(Max. 256GB)
|
M-SATA SSD120GB(Max. 256GB)
|
Power Supply
|
12V/5A
|
12V/5A
|
OS Support
|
Win 7/POSReady 7/WE 8.1 Industry/Win 10/Win 11/Linux
|
Win 7/POSReady 7/WE 8.1 Industry/Win 10/Win 11/Linux
|
Display & Touch
|
|
|
Display
|
15 TFT LCD Display
|
15 TFT LCD Display
|
Resolution
|
1024*768
|
1024*768
|
Touch
|
True-flat PCAP touch Screen (Support Multi-touch)
|
True-flat PCAP touch Screen (Support Multi-touch)
|
I/O Expansion
|
|
|
Serial Port
|
DB9*1
|
DB9*1
|
USB Port
|
USB3.0*2 + USB2.0*4
|
USB3.0*2 + USB2.0*4
|
LAN Port
|
10/100/1000 MB*1
|
10/100/1000 MB*1
|
Display Port
|
VGA*1
|
VGA*1
|
Audio
|
Line-out*1, Mic-in*1
|
Line-out*1, Mic-in*1
|
Expansion Slot
|
Mini-PCIe slot*1
|
Mini-PCIe slot*1
|
Physical Dimension
|
|
|
Packaging Dimension
|
430mm*270mm*410mm
|
430mm*270mm*410mm
|
Gross weight
|
6.5KGS
|
6.5KGS
|
Environmental
|
|
|
Operating Condition
|
0C - 40C, 20%RH - 90%RH
|
0C - 40C, 20%RH - 90%RH
|
Storage Condition
|
-20 70, 10%RH - 90%RH
|
-20 70, 10%RH - 90%RH
|
Options & Peripherals |
|
|
2nd Display |
VFD/9.7" 2nd LCD Display |
VFD/9.7" 2nd LCD Display |
MSR |
Support 1/2/3 track |
Support 1/2/3 track |
Dallas Key |
Dallas I-button Reader |
Dallas I-button Reader |
